Quick answer

The TDQR09 tank can replace faucet supply, but the manual still requires a drain route. Confirm the hose path, cabinet orientation, top-fill reach, and your largest dish before ordering.

Evidence
6 cited sources
Decision checks
5 before-buying checks
Model set
1 exact model
Testing basis
Published-source review

The tank changes supply, not the need to drain

If you are considering the AIRMSEN TDQR09 because your faucet is not a practical water connection, the built-in tank addresses that supply problem. The exact-model manual still requires a drain hose, so “no installation” language does not settle the waste-water plan.

That is the purchase decision to settle first. Can the appliance sit somewhere water can be added and wastewater safely directed, while leaving room to open and load it? AIRMSEN’s current product page lists a 5 L tank and three place settings. Those facts describe water input and rated capacity; they do not confirm counter fit, plate diameter, or cleaning performance.

There is one exact-model measurement issue to resolve before cabinet math: AIRMSEN’s current product page and the TDQR09 manual assign their shared body dimensions different axis orders. Ask the maker to confirm height and depth before relying on a tight opening.

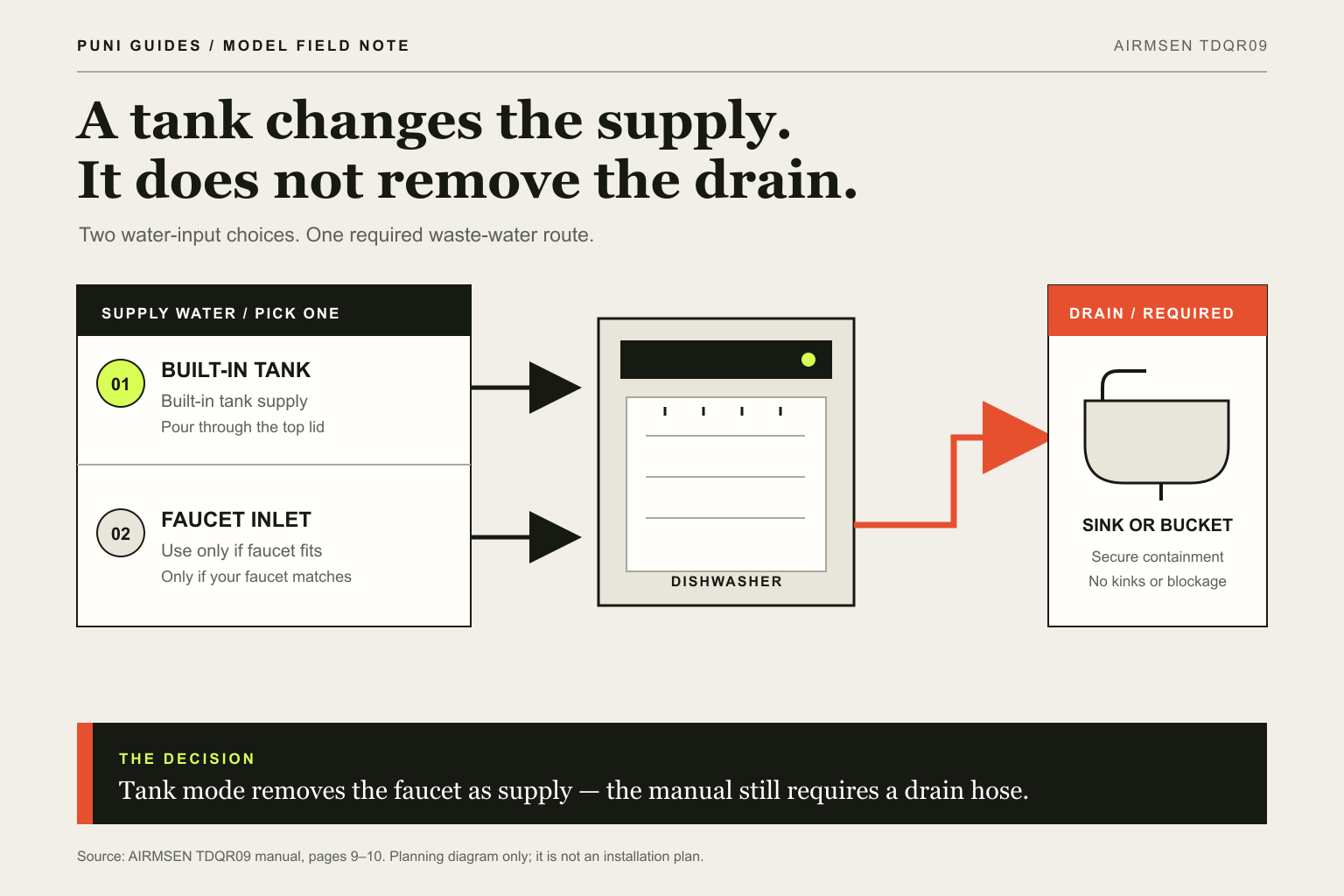

Editorial diagram showing tank or faucet feeding a generic countertop dishwasher, with both paths leading to a required drain hose and sink or secured bucket.
Supply and drain mapSupply-route planning diagram; the tank changes water input while the manual still requires drainage. Not a product image or scale plumbing plan.

Map the waste-water route before choosing a supply mode

The manual routes the rear drain hose to a sink, bucket, or listed pipe connection and says to secure it without kinks. Pitcher-filled supply changes one hose decision; used water still needs a destination.

Sketch the route over a photo of your counter. If a bucket is the only temporary destination, decide whether it can contain the water and who will monitor it. A permanent pipe path may involve cabinet modification; do not drill into a rental or cabinet without permission and suitable installation advice.

Next, test the supply routine. The tank lid is on top, so check whether you can pour water into it with the dishwasher where it will run. If you plan faucet mode, match the inlet hose to your faucet before buying; a product photo is not compatibility evidence. Confirm power access at the same location.

  • Mark the rear outlet and trace a clear route to a sink or secured bucket.
  • Check that the hose can reach without kinks or blockage.
  • Try the top-fill motion and door-opening path on a counter sketch.
  • Confirm that a suitable outlet remains accessible in the planned position.

Do not treat the cabinet number as a fit guarantee

The current AIRMSEN page labels the body measurements as depth, width, and height. The manual labels the same number set as height, width, and depth. Since the sources conflict on axis order, the product FAQ’s 18.5-inch cabinet-opening suggestion is not enough to settle your installation. Ask AIRMSEN to confirm the measurements before buying for a tight shelf or cabinet.

Then measure the actual position: the narrowest opening, the cabinet lip or backsplash, the door’s open path, and the working room above the tank lid. Published body dimensions do not give you an open-door depth or top-fill access zone. Add the cord and drain route to the sketch, and check whether loading and unloading block the sink or walkway.

One owner’s story illustrates a space mismatch. The account was marked both “Incentivized” and “Verified Purchaser,” with one week of ownership. The owner reported it was too tall for their cabinets and moved it to a microwave cart. That is a short-term, incentivized account about one kitchen, not evidence of a typical fit or long-term durability.

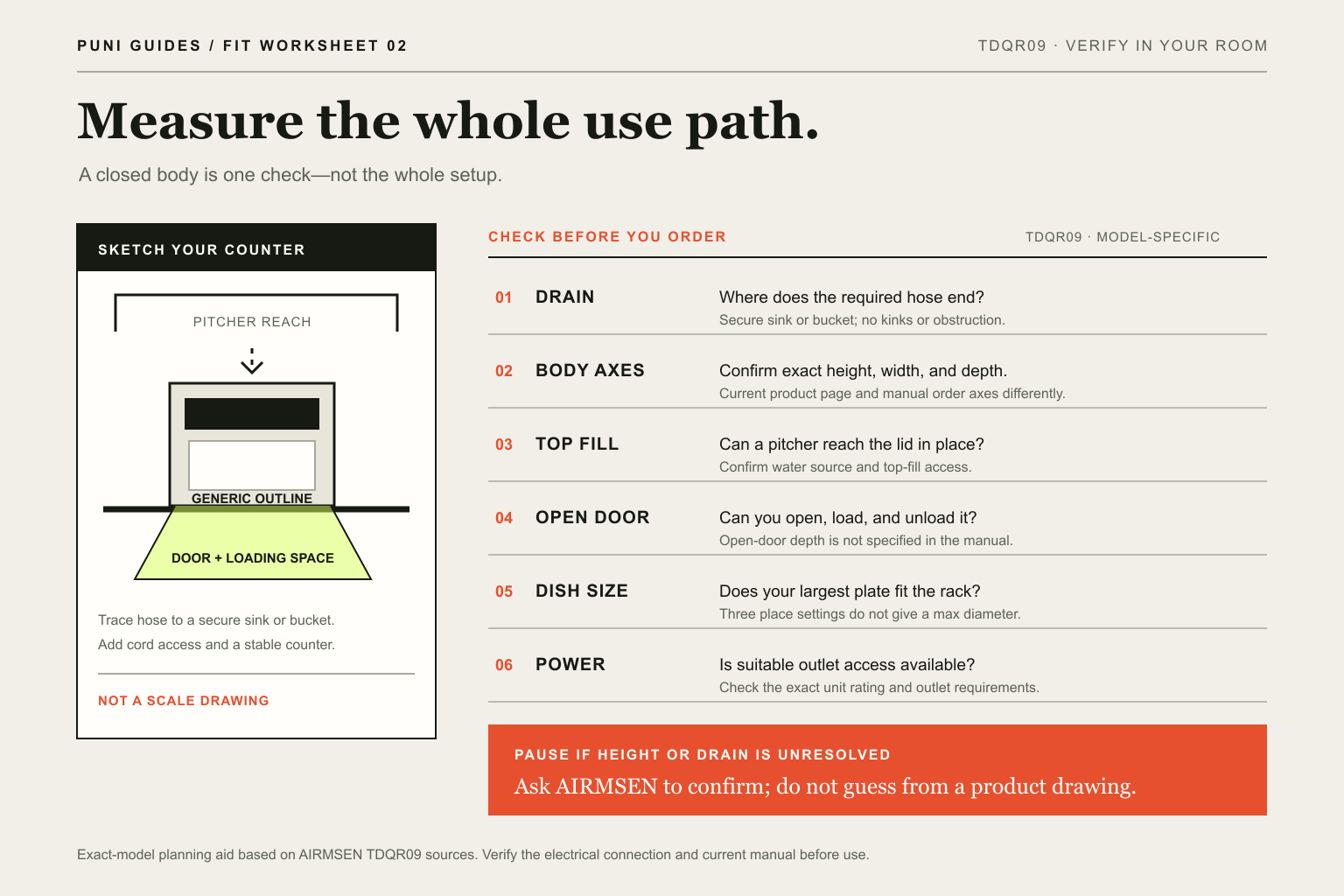

Six-row AIRMSEN TDQR09 fit worksheet listing drain route, dimension-axis confirmation, top-fill reach, door space, largest dish, and outlet access.
Before-you-buy worksheetUse this worksheet with your room and the exact model sources; the axis conflict, dish size, and operating clearances still need checking.

Measure the dish that would rule it out

Three place settings do not tell you the maximum diameter of a dinner plate. The TDQR09 manual illustrates three dinner plates but gives no maximum plate measurement. Compare the rack with your own largest plate and tall glass, and ask AIRMSEN for an exact-model limit if either item is essential.

Another owner, in a verified-purchase account dated May 7, 2026 for TDQR09, said a Corelle dinner plate did not fit as shown. That is one owner’s report, not a measured product limit or proof that all Corelle plates fail. Use it as a reason to confirm your own dishes, not as a claim about failure rates.

  • Measure your widest dinner plate, including its rim.
  • Compare tall glasses and cookware separately; the place-setting number does not guarantee every shape.
  • Confirm any essential dish size with the exact-model loading guidance.

Buy only after the whole setup checks out

The TDQR09 is a conditional fit when pitcher-filled supply solves a real faucet constraint and a drain destination, reachable tank lid, confirmed space, and workable dish fit are also available. If any one of those paths is unresolved, the water tank alone does not solve the kitchen problem.

Pause if the drain hose cannot reach without a kink, a pipe route would require an unapproved cabinet change, the maker has not clarified a tight cabinet measurement, or an essential plate size remains unknown. The next step is a measurement or a question to AIRMSEN—not a guess based on the word “portable.”

This is a source-based fit guide, not a hands-on test of washing, drying, sound, energy use, or durability. The link below identifies the exact TDQR09 ASIN; check that model on the listing before purchase.

The exact model and its limits

Use the verified facts and limits below to decide whether this model fits your routine.

01 · Tank supply with separately planned drainageManual Amazon text linkAmazon link checked 2026-10-02

Best for: Use when pitcher-filled supply solves the faucet issue and the full route and fit checks pass.

AIRMSEN TDQR09 Countertop Dishwasher with Built-in Water Tank

Use this exact model only after checking the appliance against your counter, dish sizes, and daily setup path. This guide is a source-based fit check, not a hands-on evaluation of wash quality or durability.

Verified facts
  • AIRMSEN identifies model TDQR09; the exact Amazon listing is ASIN B0HDRVBP6H.
  • The current AIRMSEN page lists a built-in 5 L tank and three place settings.
  • The current product page and manual label body dimensions in different axis orders.
Rule-out checks
  • Tank mode still needs a workable wastewater route; check the exact model instructions before purchase.
  • Official sources conflict on dimension-axis order; confirm actual height and depth before a tight cabinet fit.
  • The manual gives no maximum plate diameter or open-door depth; verify your dishes and operating space.
  • Owner accounts are limited anecdotes, including one marked incentivized and owned for one week; this is not a hands-on or long-term test.
Check current details on Amazon

Before-you-buy checklist

  1. Confirm the exact model TDQR09 and compare Amazon ASIN B0HDRVBP6H.
  2. Sketch where supply water enters and where wastewater will go.
  3. Ask AIRMSEN to clarify the body-dimension axes before a tight cabinet decision.
  4. Check tank access, door movement, your largest dishes, and outlet reach.
  5. Pause if the route, space, dish, or outlet question remains unresolved.

Sources and verification

Sources support the measurement method and examples above. Product-specific recommendations require a current manufacturer page or manual for that exact model.
