Choose KitchenAid KSM3316X when width and smaller batches control the decision, Hamilton Beach 63395 when front-to-back depth matters most, or Cuisinart SM-50 when 5.5-quart capacity justifies a deeper storage position. Keep a hand mixer if access or storage cannot be confirmed.
- Evidence
- 6 cited sources
- Decision checks
- 8 before-buying checks
- Model set
- 3 exact models, not a ranking
- Testing basis
- Published-source review
The short answer starts with your hardest measurement
A stand mixer can fit its closed footprint and still fail in a small kitchen. The head may need to tilt, the bowl may need to come out, and a machine that must move after every bake can become difficult to live with. Start by measuring the slot, then choose the bowl branch that matches your weekly batches.
KitchenAid KSM3316X is the narrow small-batch branch at 7.8 inches wide and 3.5 quarts. Hamilton Beach 63395 is the shallower 4-quart branch at 10.9 inches deep. Cuisinart SM-50 is the larger 5.5-quart branch at 14.17 inches deep. Those dimensions create different placement problems rather than a simple best-to-worst order.
The direct choice is conditional: use KitchenAid when width is the hard limit, Hamilton Beach when depth is tighter than width, and Cuisinart only when the larger bowl is worth reserving a deeper storage position. If you cannot confirm access in the intended location, a hand mixer or existing tool may solve the space problem better.
Follow this decision path before looking at attachments

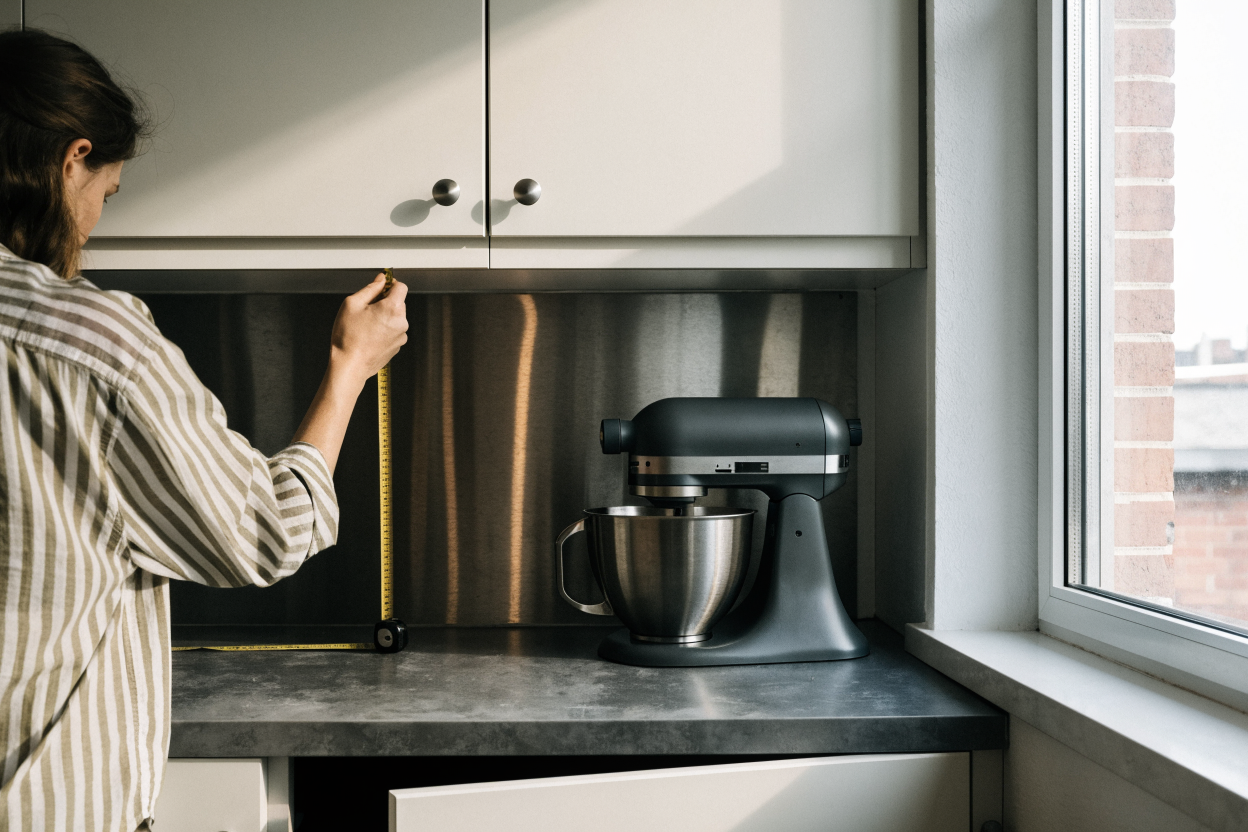

First, measure usable width, depth, and height to the nearest obstruction. Include cabinet sides, backsplash, outlets, and the front edge of the counter. Closed dimensions tell you where the assembled mixer may sit; they do not establish the space needed to open the head, remove the bowl, add ingredients, or clean around the base.
Second, decide whether the mixer will stay assembled on the counter. A stored machine has a different burden from a countertop machine. KitchenAid's supplied weight is 18.4 pounds. Hamilton Beach's supplied facts do not include a weight. Cuisinart's catalog record lists 21.5 pounds, while the reviewed manufacturer page lists 18.10 pounds, so verify the exact retail configuration before relying on that figure.
Third, match capacity to your normal batch pattern. The documented choices are 3.5 quarts, 4 quarts, and 5.5 quarts. The reviewed evidence does not provide one directly comparable batch chart for all three, so capacity should be treated as a branch for planning, not a promise about every recipe.
When width and depth point to different mixers
KitchenAid KSM3316X has the narrowest listed width at 7.8 inches. Its listed depth is 12.3 inches and its height is 15.7 inches. That makes it the clearest starting point for a narrow counter or shelf, provided 3.5 quarts is sufficient for the batches you make. Its tilt-head design means the access question remains open; the closed height is not an operating-clearance measurement.
Hamilton Beach 63395 reverses the emphasis. It lists 14.4 inches in width, 10.9 inches in depth, and 14.5 inches in height. If the back edge of your counter is fixed and front-to-back space is scarce, the shorter listed depth is the important fact. The wider body can consume more side-to-side room, so it is a poor fit when width is the actual bottleneck.
Cuisinart SM-50 lists 7.87 inches in width, 14.17 inches in length, and 14.13 inches in height. Its width is close to KitchenAid's listed width, but its deeper body changes the storage problem. A narrow shelf is not automatically suitable if the machine extends too far forward or the storage path cannot accommodate it.
None of these product pages supplies a universal operating-clearance number for your kitchen. Do not add an invented rear, top, or side allowance to the listed dimensions. Instead, check the exact manual and physically confirm that the head, bowl, controls, cord, and cleanup access work in the chosen position.
Capacity is useful only when it matches the batch you actually make
The KitchenAid Mini's 3.5-quart bowl supports the smallest documented capacity branch. That is the logical fit when your priority is a narrower machine and your weekly baking is usually small-batch. The rule-out condition is equally clear: if your normal recipes need the larger capacity branch, the compact footprint may not justify the compromise.
Hamilton Beach occupies the 4-quart middle branch. Its maker page identifies a stainless steel bowl with handles, a tilt-up head, and three included attachments: flat beater, dough hook, and whisk. That combination makes it the practical candidate when 4 quarts is enough and the shallower body solves a counter-depth conflict.
Cuisinart provides the largest documented bowl at 5.5 quarts. Its maker page lists a tilt-back head, splash guard, chef's whisk, dough hook, and flat mixing paddle. The larger bowl is the reason to consider it, but the 14.17-inch length means it should be evaluated as a deeper storage commitment rather than as a compact replacement for the smaller branches.
The supplied evidence does not establish a shared maximum dough or batter quantity. Do not translate bowl capacity into a precise recipe limit without checking the relevant manual or manufacturer guidance for the exact model.
Controls, tools, and cleanup have different evidence strength
KitchenAid is documented with 10 speeds, and its product guide identifies a flat beater, wire whip, and dough hook for the KSM3316 family. The guide also says the KSM3316 model includes a polished stainless steel bowl with handle, flex edge beater, wire whip, and dough hook. It identifies optional attachments through the mixer power hub. The exact Amazon color suffix remains unresolved.
Hamilton Beach lists 7 speeds, a 300-watt motor, a stainless steel 4-quart bowl with handles, a splatter shield, and three attachments. Its product page states that the bowl and attachments are dishwasher safe. That is the clearest cleanup documentation in this comparison, although dishwasher-safe parts do not eliminate the need to reach and wipe the mixer body.
Cuisinart lists 12 speeds, a 500-watt motor, a tilt-back head, a power hub for optional attachments, and dishwasher-safe bowl and accessories. The page identifies the SM-50 as discontinued and excludes availability in Colorado, Maine, and Minnesota. That limitation must be resolved before treating it as a viable purchase branch.
Speed counts and wattage are specifications, not independent evidence of quieter operation, stronger dough handling, or better results. No hands-on performance claim belongs in this comparison. Cleanup burden also depends on whether the bowl and tools can be removed and stored without blocking another appliance.

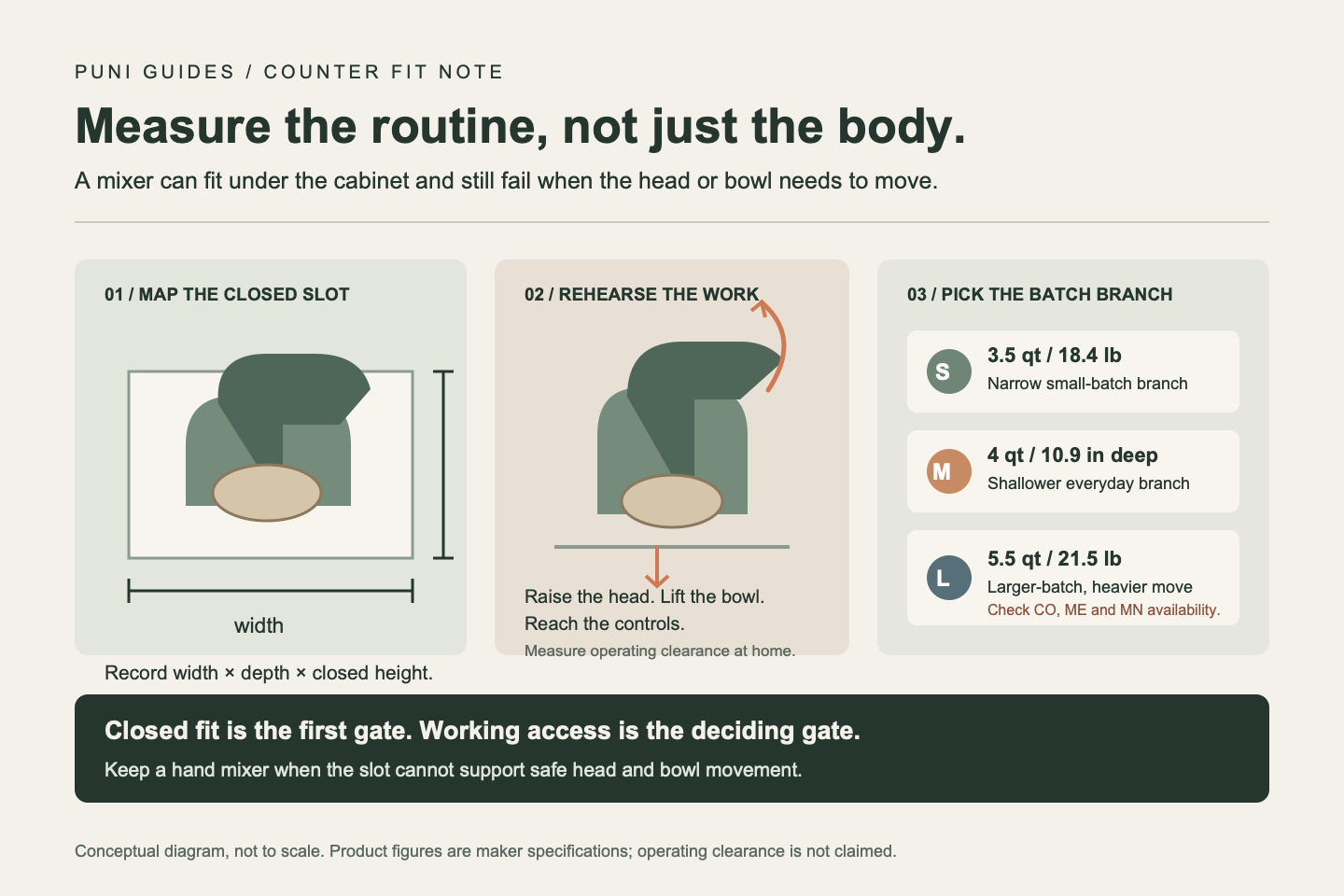

Use this five-minute fit worksheet
Write the usable slot dimensions in three lines: width, depth, and height. Then write the operating questions beside them: can the head open, can the bowl be reached, can ingredients be added, and can the tools be removed for cleanup? Mark any answer unknown until the exact manufacturer instructions or the physical location resolves it.
Next, choose the branch that addresses the limiting dimension. Width-limited means start with KitchenAid KSM3316X. Depth-limited means start with Hamilton Beach 63395. Capacity-limited means consider Cuisinart SM-50 only after confirming the deeper position and resolving its current availability and exact retail identity.
Finally, test the storage move. If the mixer will live in a cabinet, confirm where the bowl, tools, and splash guard will go. If the machine remains on the counter, confirm that its access zone does not consume the preparation area needed for the rest of the kitchen. This is a placement decision, not just a dimension comparison.
- Measure usable width, depth, and height at the intended location.
- Confirm head-opening and bowl-access space separately from closed dimensions.
- Decide whether the machine stays assembled or moves after every bake.
- Match the 3.5-quart, 4-quart, or 5.5-quart branch to your normal batch pattern.
- Check where the bowl, attachments, and splash guard will be stored.
- Verify the exact US Amazon ASIN, color, and configuration before purchase action is taken separately from this guide’s evidence.
The choice changes when the constraint changes
For a narrow counter and smaller weekly batches, KitchenAid KSM3316X is the clearest fit branch. For a shallow counter with more side-to-side room, Hamilton Beach 63395 is the more relevant branch because its listed depth is the shortest of the three. For larger batches, Cuisinart SM-50 is the capacity branch, but only if the deeper storage position and current availability work for you.
The best alternative may be no stand mixer. If the machine cannot remain accessible, cannot be moved without repeated friction, or has no confirmed head and bowl access in the intended slot, keep a hand mixer or existing tool for small batches. A smaller appliance class can solve the physical constraint more completely than a stand mixer that technically fits only when closed.
Before using a purchase action, resolve the exact color and configuration for each Amazon option. The supplied records do not establish that the Amazon variants exactly match the manufacturer pages, and the Cuisinart page adds a current discontinued and regional-availability limitation. Those are identity checks, not details to guess around.
Real models to compare against the decision
These are reference models, not universal winners or a ranked list. Each exact listing is paired with source evidence; your use case and constraints still decide whether it belongs on the shortlist. Rule-out checks identify unresolved facts or incompatible conditions instead of inventing generic cons.
| Fit profile | Exact model | Capacity | Published closed size | Power |
|---|---|---|---|---|
| Narrow small-batch branch for width-constrained counters. | KitchenAid Artisan Mini 3.5-Quart Tilt-Head Stand Mixer | 3.5 quart | 7.8 W x 12.3 D x 15.7 H in | Not provided in current catalog |
| Shallow 4-quart branch for depth-constrained counters. | Hamilton Beach 7-Speed 4-Quart Stand Mixer | 4 quart | 14.4 W x 10.9 D x 14.5 H in | 300 W |
| Larger-capacity branch for deeper storage positions. | Cuisinart Precision Master 5.5-Quart Stand Mixer | 5.5 quart | 7.87 W x 14.17 L x 14.13 H in | 500 W |
Closed-size figures do not include drawer, lid, cup, or hand movement. “Not published” is a verify-before-buying flag, not an estimate.
Best for: Choose this when width is tight and 3.5 quarts covers your weekly batches.
KitchenAid Artisan Mini 3.5-Quart Tilt-Head Stand Mixer
KitchenAid KSM3316X lists a 7.8-inch width, 12.3-inch depth, 15.7-inch height, 3.5-quart bowl, 10 speeds, and 18.4-pound weight. Its tilt-head format makes access a separate check, and the exact Amazon color configuration remains unresolved.
Verified facts- The manufacturer identifies the model family as KSM3316X.
- Listed dimensions are 7.8 W x 12.3 D x 15.7 H inches.
- The documented bowl capacity is 3.5 quarts.
- The documented control range is 10 speeds.
- The supplied product facts list an 18.4-pound weight.
- Operating head clearance is not established for the reader's location.
- The exact Amazon color and configuration are unresolved.
- The evidence does not provide a directly comparable batch chart for all three models.
- Cleanup instructions are documented in the KitchenAid product guide, but access burden still depends on the chosen location.
Paid link — I may earn a commission from a qualifying purchase. No price or rating is stored here.
Best for: Choose this when depth is the hard limit and 4 quarts fits your routine.
Hamilton Beach 7-Speed 4-Quart Stand Mixer
Hamilton Beach 63395 lists a 14.4-inch width, 10.9-inch depth, 14.5-inch height, 4-quart bowl, 7 speeds, and 300 watts. Its shorter depth is the decisive fit fact, while its wider body consumes more side-to-side space. The supplied evidence does not include its weight.
Verified facts- The manufacturer identifies the product as model 63395.
- Listed dimensions are 14.4 W x 10.9 D x 14.5 H inches.
- The documented bowl capacity is 4 quarts.
- The documented control range is 7 speeds.
- The manufacturer lists a 300-watt motor and three included attachments: flat beater, dough hook, and whisk.
- The supplied evidence does not provide the product weight.
- Operating head and bowl-access clearance are not established for the reader's location.
- The exact Amazon color and configuration remain unresolved.
- Mixing performance is not independently tested.
Paid link — I may earn a commission from a qualifying purchase. No price or rating is stored here.
Best for: Choose this when 5.5 quarts justifies a deeper storage position.
Cuisinart Precision Master 5.5-Quart Stand Mixer
Cuisinart SM-50 lists a 7.87-inch width, 14.17-inch length, 14.13-inch height, 5.5-quart bowl, 12 speeds, and 500 watts. The catalog lists 21.5 pounds while the maker page lists 18.10 pounds, so verify the exact variant. The maker page also states regional sales exclusions.
Verified facts- The manufacturer identifies the product as SM-50.
- Listed dimensions are 14.17 L x 7.87 W x 14.13 H inches.
- The documented bowl capacity is 5.5 quarts.
- The documented control range is 12 speeds.
- The manufacturer lists a 500-watt motor, tilt-back head, power hub, splash guard, whisk, dough hook, and flat paddle.
- The catalog and manufacturer page report different weights: 21.5 pounds and 18.10 pounds.
- The manufacturer page labels the model discontinued.
- The manufacturer page excludes availability in Colorado, Maine, and Minnesota.
- Operating clearance and bowl access are not established for the reader's location.
Paid link — I may earn a commission from a qualifying purchase. No price or rating is stored here.
Before-you-buy checklist
- Measure the usable width, depth, and height of the intended counter or storage slot.
- Check head-opening and bowl-access space separately from closed dimensions.
- Decide whether the mixer stays assembled or moves after each bake.
- Match the capacity branch to your normal batch pattern: 3.5, 4, or 5.5 quarts.
- Confirm where the bowl, tools, and splash guard will be stored.
- Verify the exact US Amazon ASIN, color, and configuration before purchase.
- If no candidate passes access and storage checks, keep a hand mixer or existing tool instead.
- If considering Cuisinart SM-50, verify its current manufacturer status and regional availability in Colorado, Maine, and Minnesota.
Sources and verification
Sources support the measurement method and examples above. Product-specific recommendations require a current manufacturer page or manual for that exact model.
- KitchenAid Artisan Mini 3.5-Quart Stand Mixer FAQsKitchenAid
- 7 Speed Stand Mixer, 4 Quart, Red, 63395Hamilton Beach
- Precision Master 5.5-Quart Stand Mixer, SM-50Cuisinart
- KitchenAid Artisan Mini 3.5-Quart Tilt-Head Stand MixerAmazon verified affiliate listing
- Hamilton Beach 7-Speed 4-Quart Stand MixerAmazon verified affiliate listing
- Cuisinart Precision Master 5.5-Quart Stand MixerAmazon verified affiliate listing
